Here's the steps to make sure your Zebra printer is ready for connection:
Setup ZD410

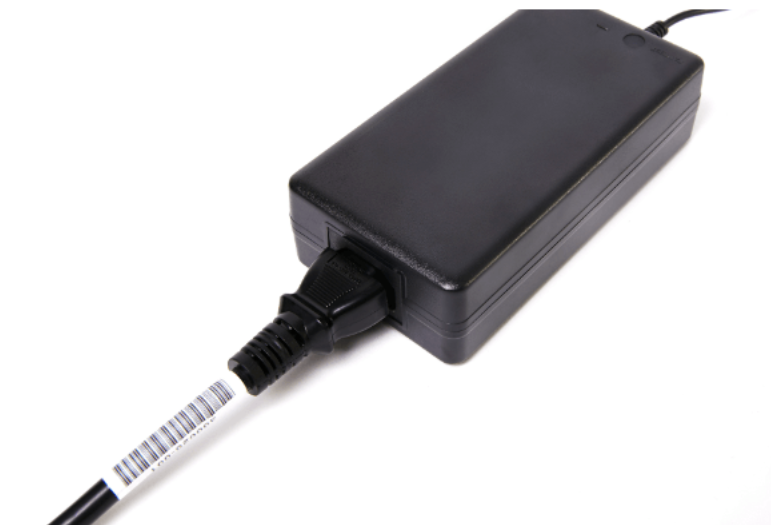

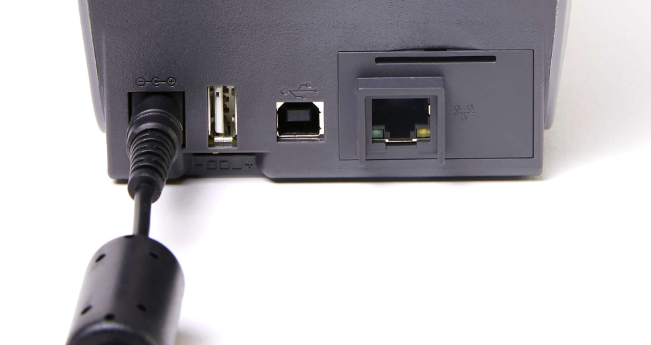

- Connect the power supply to the back of your label printer.
- Connect the power cord to the power supply and an electrical outlet.

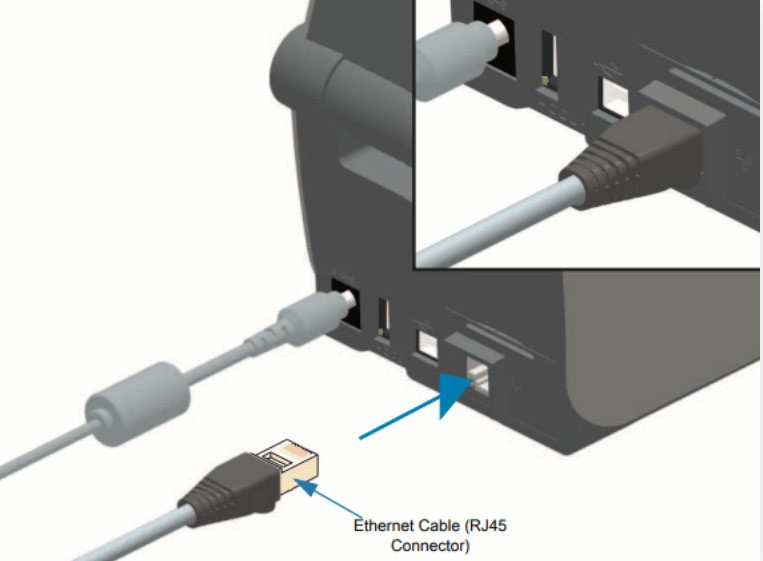

- Connect one end of the Ethernet cable to your label printer.
- Connect the other end of the Ethernet cable to your internet router.

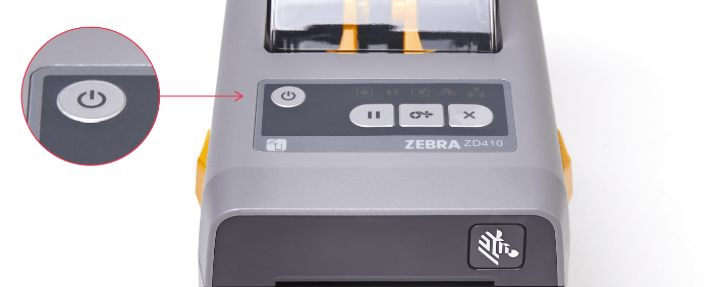

- Press the power button to turn on your label printer, and the LED network indicator will shine green if successfully connected to a network.
Inserting the label roll
Label rolls are purchased separately from your label printer.
Note: The labels will print blank if inserted incorrectly.

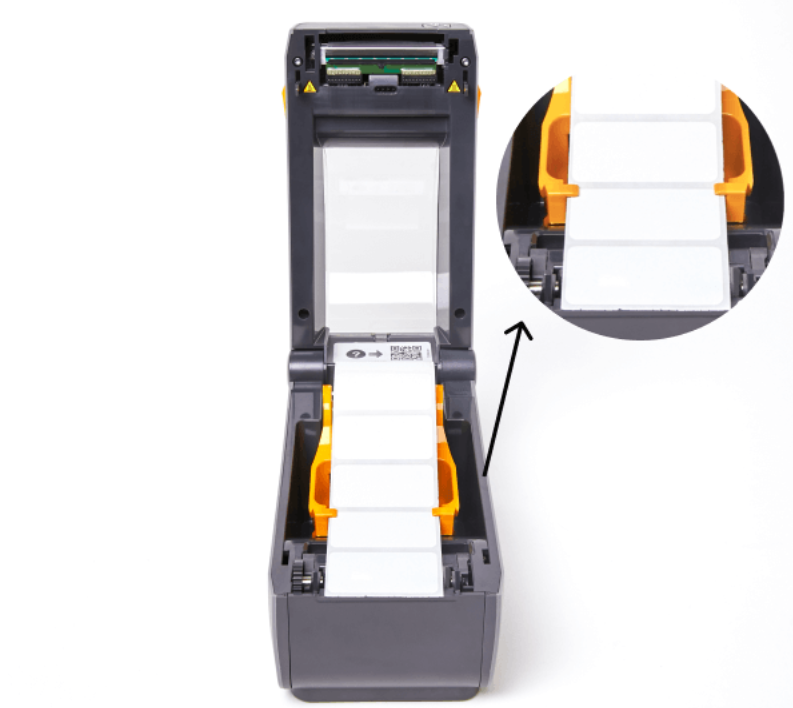

Pull the yellow latches on both sides of the printer towards you and lift the lid open.
Pull the yellow roll guides apart and insert the label roll with the labels facing upwards.
Release the roll guides and push them together. Make sure the label roll is secure and turning freely.
Pull the labels past the cutter at the front of the printer.
Push the labels under the roll guides.
